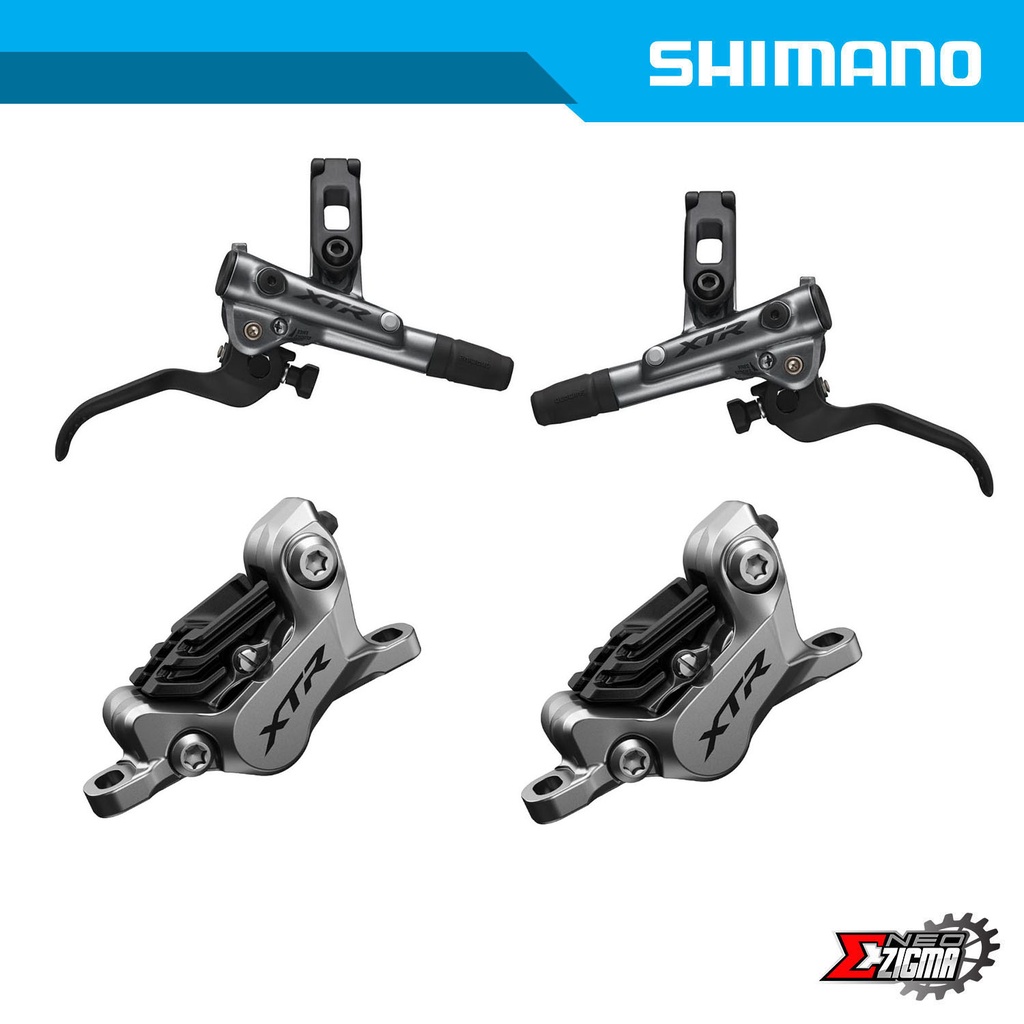

The XTR M9120 caliper features a MONO-BODY design which is machined from a single cold forged block to maximize rigidity and four ceramic pistons for perfect, Rider Tuned stopping power.
FEATURES
High-performance brake control
Higher braking force with reduced input force at finger tips highly linear response, and braking power, stroke, and time lag reduced by 30% compared with M9000
High power
10% braking power up (vs. M9020)
4 piston low-profile design
Banjo type connection and inside hose routing
PRODUCT SPECIFICATIONS
MODEL NO
BR-M9120
SERIES
XTR M9100 Series
Color
Series color
Average weight
131
Remarks
** Titanium
Brake type
Hydraulic disc brake
Brake hose (Kit)
SM-BH90-SBM
Hose joint
Banjo
Brake hose color (kit)|1
Black
J-Kit spec (for OEM)
✔
ICE TECHNOLOGIES pad compatible caliper
✔
Pad|Standard 1
N03A-RF Resin (w/ fin)
Pad|Standard 2
N04C-MF Metal (w/ fin)
Recommended brake lever
BL-M9120
Recommended disc brake rotor
RT-MT900
Compatible Brake Rotor Size|140 mm (SS)
✔
Compatible Brake Rotor Size|160 mm (S)
✔
Compatible Brake Rotor Size|180 mm (M)
✔
Compatible Brake Rotor Size|203 mm (L)
✔
Compatible brake rotor size|220 mm (LL)
✔
Oil
SHIMANO mineral
Mount type
Post type
Piston
4
Caliper fixing bolt|Tool size
** 4 mm
Caliper fixing bolt|Anti loosen method
Wiring
Pad mount
Pad axle
SHIMANO XTR - Hydraulic Disc Brake Trail Lever - I-SPEC EV Clamp Band - SERVO WAVE Action
SHIMANO's XTR Trail lever pairs with the new 4-piston Trail caliper offering Rider Tuned stopping power for the ever more capable breed of modern mountain bikes. With tool-free reach adjust and SHIMANO's new I-spec EV standard, the BL-M9120 lever continues to set the standard for mountain bike brakes.
FEATURES
Seamless operation
Quicker rebound between actions maintains rider concentration
Greater flexibility and action-optimized cockpit layout
Update brake lever shape
High rigidity
8% stiffer than M9000 even under high temp conditions
Quicker brake engagement with shorter free stroke
PRODUCT SPECIFICATIONS
MODEL NO
BL-M9120
SERIES
XTR M9100 Series
Color
Series color
Average weight
97
Brake type
Hydraulic disc brake
Lever size (finger)
2
Brake hose (Kit)
SM-BH90-SBM
Hose joint
Straight
Brake hose color (kit)|1
Black
J-Kit spec (for OEM)
✔
SERVO WAVE
✔
Reach adjust|Toolless
✔
Free stroke adjust
✔
Compatible shift lever mount|Clamp band
✔
Compatible shift lever mount|I-SPEC EV
✔
Clamp band|Open clamp
✔
Shift lever rotation angle adjust range (I-SPEC EV ; deg.)
