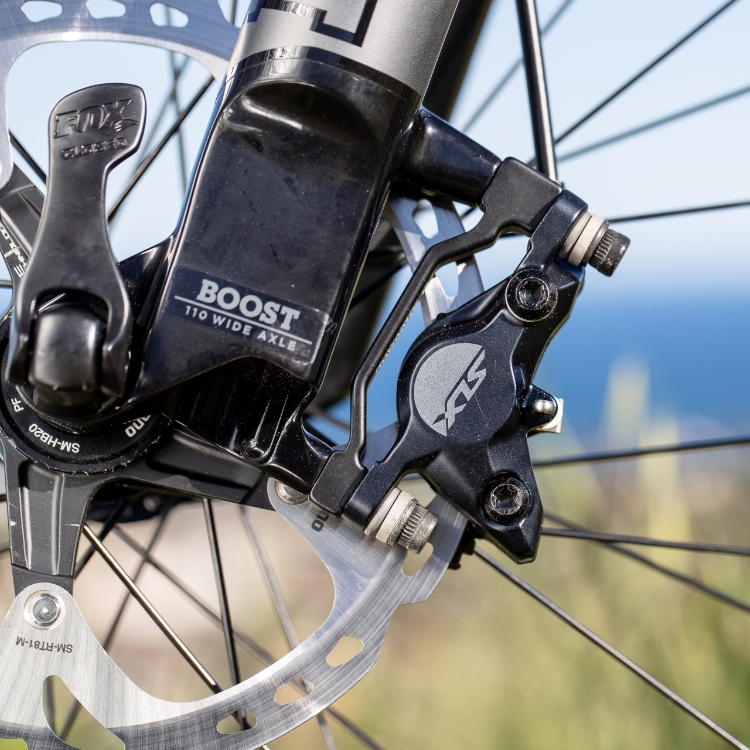

The SLX M7100 caliper features lightweight braking performance and reliable stopping power in all conditions
FEATURES
Stable and versatile high-performance brake control
Quicker Piston retraction
Lightweight braking performance
Two piston
Quick and easy assembly
Banjo type connection and inside hose routing
PRODUCT SPECIFICATIONS
MODEL NO
BR-M7100
SERIES
SLX M7100 Series
Color
Series color
Average weight
271
Brake type
Hydraulic disc brake
Brake hose (Kit)
SM-BH90-SBM
Hose joint
Banjo
Brake hose color (kit)|1
Black
J-Kit spec (for OEM)
✔
ICE TECHNOLOGIES pad compatible caliper
✔
Pad|Standard 1
G05S-RX Resin (w/o fin)
Pad|Standard 2
G04S-MX Metal (w/o fin)
Pad|Option 1
J05A-RF Resin (w/ fin)
Pad|Option 2
J04C-MF Metal (w/ fin)
Recommended brake lever
BL-M7100
Recommended disc brake rotor
SM-RT70
Compatible Brake Rotor Size|140 mm (SS)
✔
Compatible Brake Rotor Size|160 mm (S)
✔
Compatible Brake Rotor Size|180 mm (M)
✔
Compatible Brake Rotor Size|203 mm (L)
✔
Oil
SHIMANO Mineral
ONE WAY BLEEDING
✔
Mount type
Post-type
Piston
2
Caliper fixing bolt|Tool size
5 mm
Caliper fixing bolt|Anti loosen method
Snap ring
Pad mount
Pad axle

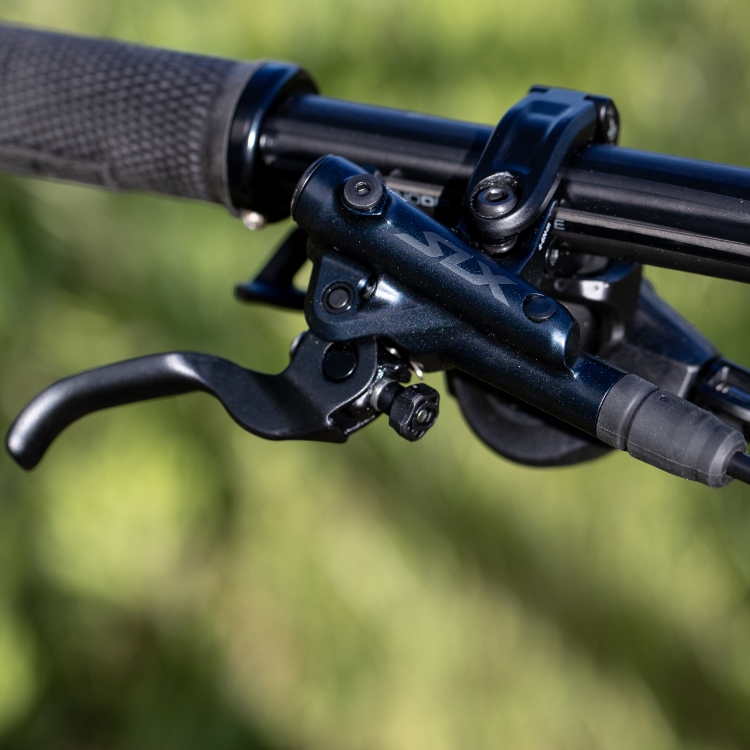

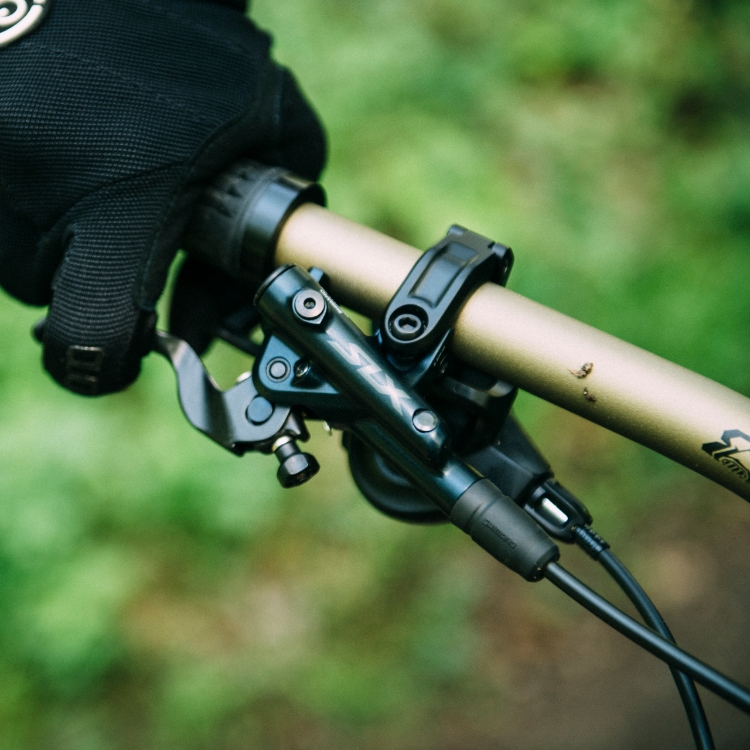

SLX - Hydraulic Disc Brake Lever - I-SPEC EV Clamp Band
With a focus on reduced weight and cross-country tuned stopping power, the SLX BL-M7100 lever provides intuitive modulation so that you can explore your limits with confidence.
FEATURES
Seamless braking raises rider concentration and enjoyment
Optimized lever axle position with additional contact point and refined ergonomics
Stable and versatile high-performance brake control
10% stiffer than M7000 even under high temp conditions
Quicker brake engagement with shorter free stroke
Rider tunable
Greater flexibility and action-optimized cockpit layout
I-SPEC EV
Simple set up and adjustment
Toolless reach adjust
PRODUCT SPECIFICATIONS
MODEL NO
BL-M7100
SERIES
SLX M7100 Series
Color
Series color
Average weight
107
Brake type
Hydraulic disc brake
Lever size (finger)
2
Brake hose (Kit)
SM-BH90-SBM
Hose joint
Straight
Brake hose color (kit)|1
Black
J-Kit spec (for OEM)
✔
SERVO WAVE
✔
Reach adjust|Toolless
✔
Compatible shift lever mount|Clamp band
✔
Compatible shift lever mount|I-SPEC EV
✔
Clamp band|Open clamp
✔
Shift lever rotation angle adjust range (I-SPEC EV ; deg.)
