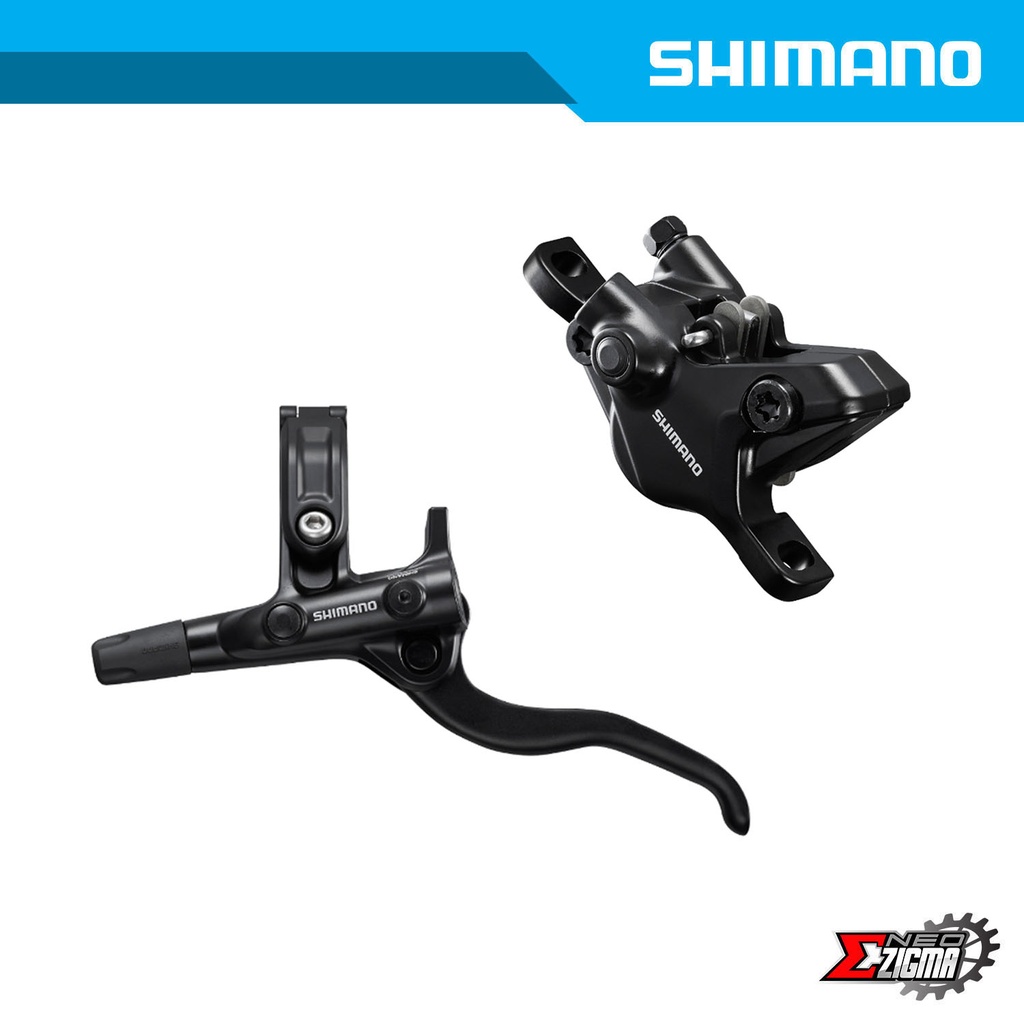

The SHIMANO MT410 hydraulic disc brake delivers long-lasting performance and quick, easy installation and adjustment.
FEATURES
Superior modulation gives you the power you need
Quick piston retraction
Lightweight 2-piston disc brake caliper
PRODUCT SPECIFICATIONS
MODEL NO
BR-MT410
SERIES
SHIMANO
Color
Black (SHIMANO logo)
Remarks
* Only compatible with resin pad
Brake type
Hydraulic disc brake
Brake hose (Kit)
SM-BH59-JK-SS
Hose joint
Straight
Brake hose color (kit)|1
Black
J-Kit spec (for OEM)
✔
Pad|Standard 1
B05S-RX Resin (w/o fin)
Recommended brake lever
BL-M4100
Recommended disc brake rotor
SM-RT30* SM-RT54* SM-RT56*
Compatible Brake Rotor Size|160 mm (S)
✔
Compatible Brake Rotor Size|180 mm (M)
✔
Compatible Brake Rotor Size|203 mm (L)
✔
Oil
SHIMANO Mineral
ONE WAY BLEEDING
✔
Mount type
Post-type
Piston
2
Caliper fixing bolt|Tool size
5 mm
Caliper fixing bolt|Anti loosen method
Snap ring
Pad mount
Split pin Stainless Steel
SHIMANO - Hydraulic Disc brake Lever - I-SPEC EV Clamp Band
With quicker brake engagement and shorter free stroke, the SHIMANO BL-M4100 brake lever delivers intuitive braking so you can stay focused on the trail ahead. The I-SPEC EV shift lever offers a wider adjustment range for superior rider tuning.
FEATURES
Intuitive and powerful braking
Quicker brake engagement with shorter free stroke
Rider tunable and action-optimized cockpit
High-performance brake control
Additional contact point for a stiffer brake lever
10 deg. rotation angle setting range for I-SPEC EV shifting lever
