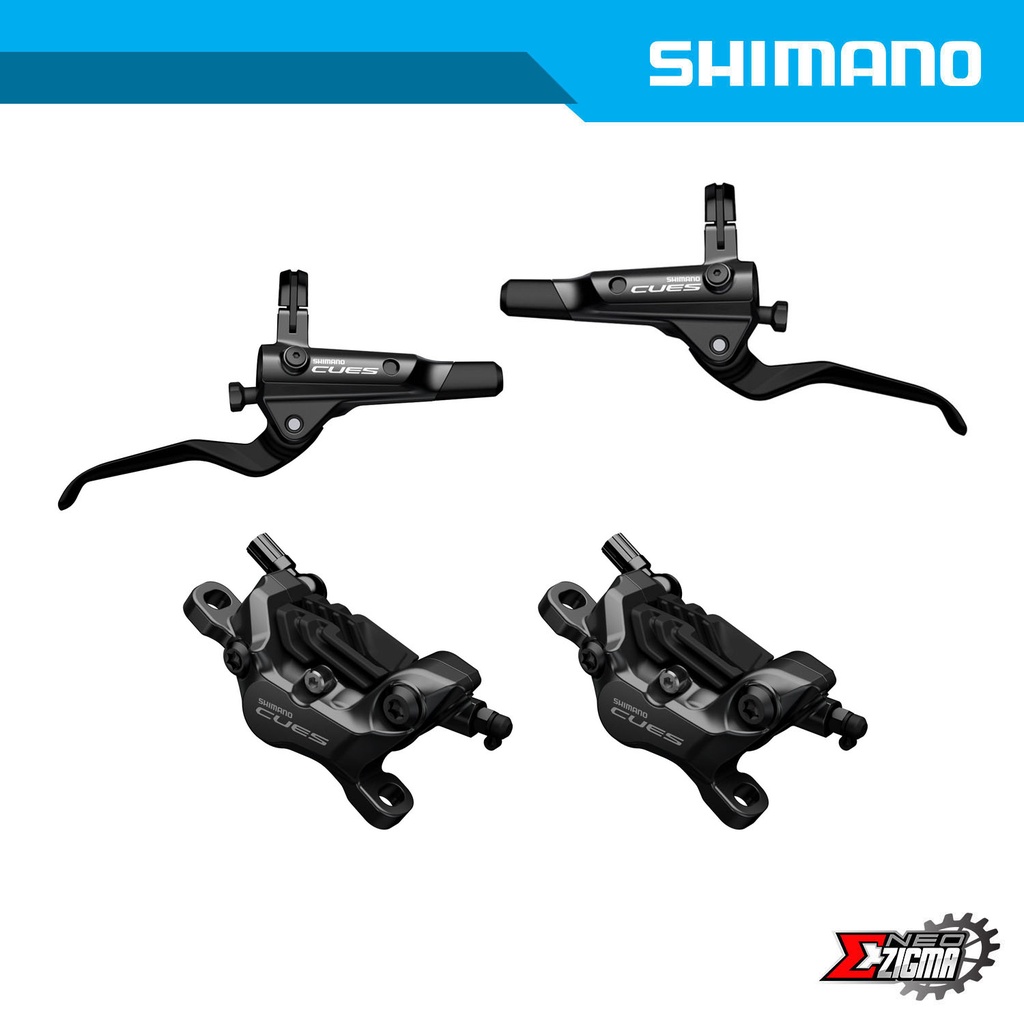

Ride fast with confidence in the strong stopping power of this 4-piston hydraulic disc brake caliper with ICE TECHNOLOGIES.
FEATURES
Excellent brake modulation provides finer braking control throughout the full range of the brake lever
High braking power instills greater confidence and control while riding at high speeds
Four Piston
Quick and easy assembly
Banjo type connection and inside hose routing
PRODUCT SPECIFICATIONS
MODEL NO
BR-U8020
SERIES
CUES U8000 Series
Color
Series color
Average weight
117
Brake type
Hydraulic disc brake
Brake hose (Kit)
SM-BH90-SBM
Hose joint
Banjo
Brake hose color (kit)|1
Black
ICE TECHNOLOGIES pad compatible caliper
✔
Pad|Standard 1
N03A-RF Resin (w/ fin)
Pad|Standard 2
D03S-RX Resin (w/o fin)
Pad|Option 1
N04C-MF Metal (w/ fin)
Pad|Option 2
D02S-MX Metal (w/o fin)
Fixing screw spec for rear mount|18.7 mm
✔
Recommended brake lever
BL-U8000
Recommended disc brake rotor
RT-MT800
Compatible Brake Rotor Size|140 mm (SS)
✔
Compatible Brake Rotor Size|160 mm (S)
✔
Compatible Brake Rotor Size|180 mm (M)
✔
Compatible Brake Rotor Size|203 mm (L)
✔
Compatible brake rotor size|220 mm (LL)
✔
Oil
SHIMANO mineral
Mount type
Post type
Piston
4
Caliper fixing bolt|Tool size
5 mm
Caliper fixing bolt|Anti loosen method
Snap ring
Pad mount
Pad axle
Designed for exceptional ergonomics and braking control
This newly shaped brake lever creates a more comfortable interface with improved ergonomics. E-bikers will also benefit from its superior modulation and excellent braking control.
FEATURES
Ergonomics enhanced by moving the brake lever's center of rotation closer to the handlebar
Superior modulation proves excellent braking power for e-trekking bikes
