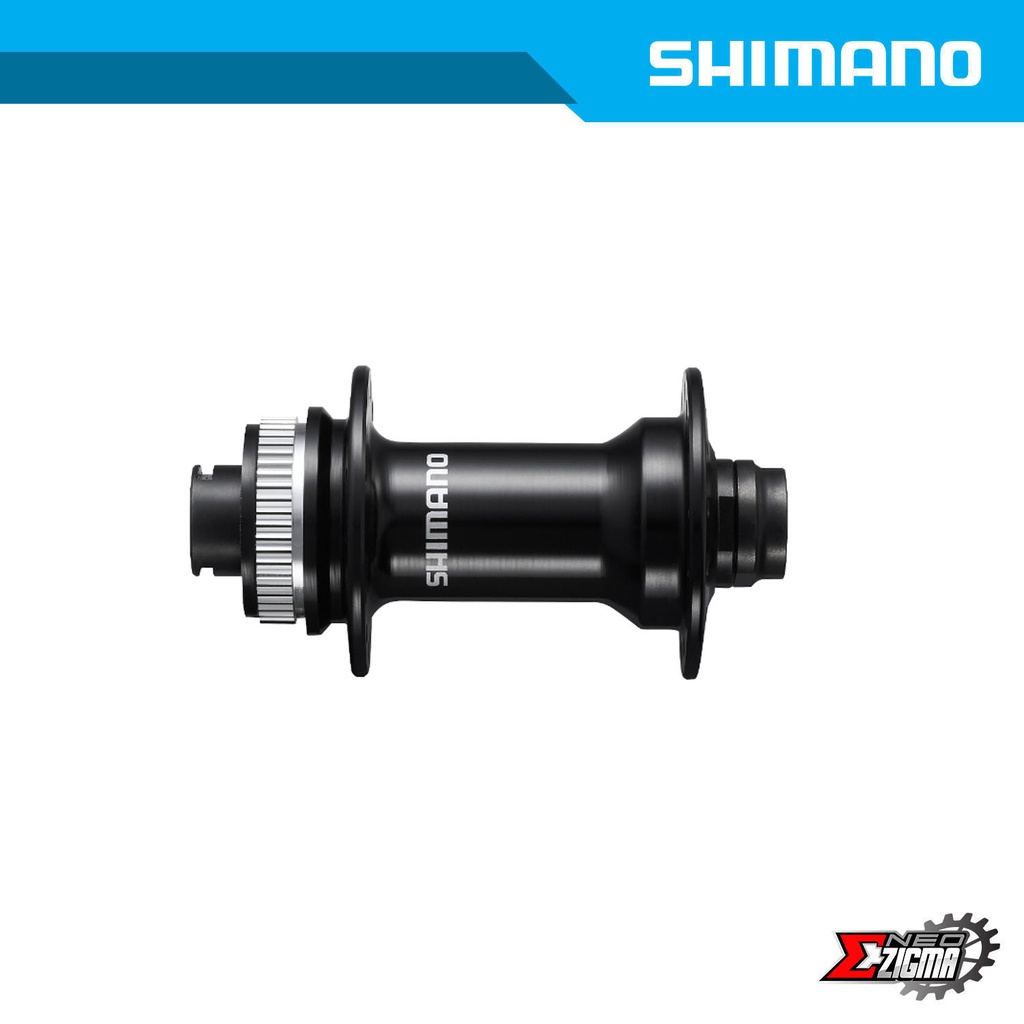

SHIMANO - Front Hub - CENTER LOCK - Disc Brake - 100x12 mm E-THRU Axle
For E-THRU disc brake compatible bicycles, the RS470 front hub blends good looks and high quality performance.
FEATURES
- High quality sealing cup and cone bearing
- Internal grease sleeve
PRODUCT SPECIFICATIONS
| MODEL NO | HB-RS470 |
|---|
| SERIES | SHIMANO |
|---|
| Color | Black |
|---|
| Color|1 Hub shell | Black |
|---|
| Brake type | CENTER LOCK disc brake |
|---|
| O.L.D. (mm) | 100 |
|---|
| Spoke hole|28H | ✔ |
|---|
| Spoke hole|32H | ✔ |
|---|
| Axle fixing method | 12 mm E-THRU |
|---|
| Thru axle (length x inner diameter ; mm)|100 x 12 | ✔ |
|---|
| Flange distance (mm) | 59.6 |
|---|
| Offset (mm) | 6.3 |
|---|
| P.C.D. left / right (mm) | 44 |
|---|
| Flange diameter (mm) | 52.8 |
|---|
| Seal | Contact |
|---|
| Internal grease sleeve | ✔ |
|---|
| Radial lacing | ✔ |
|---|
