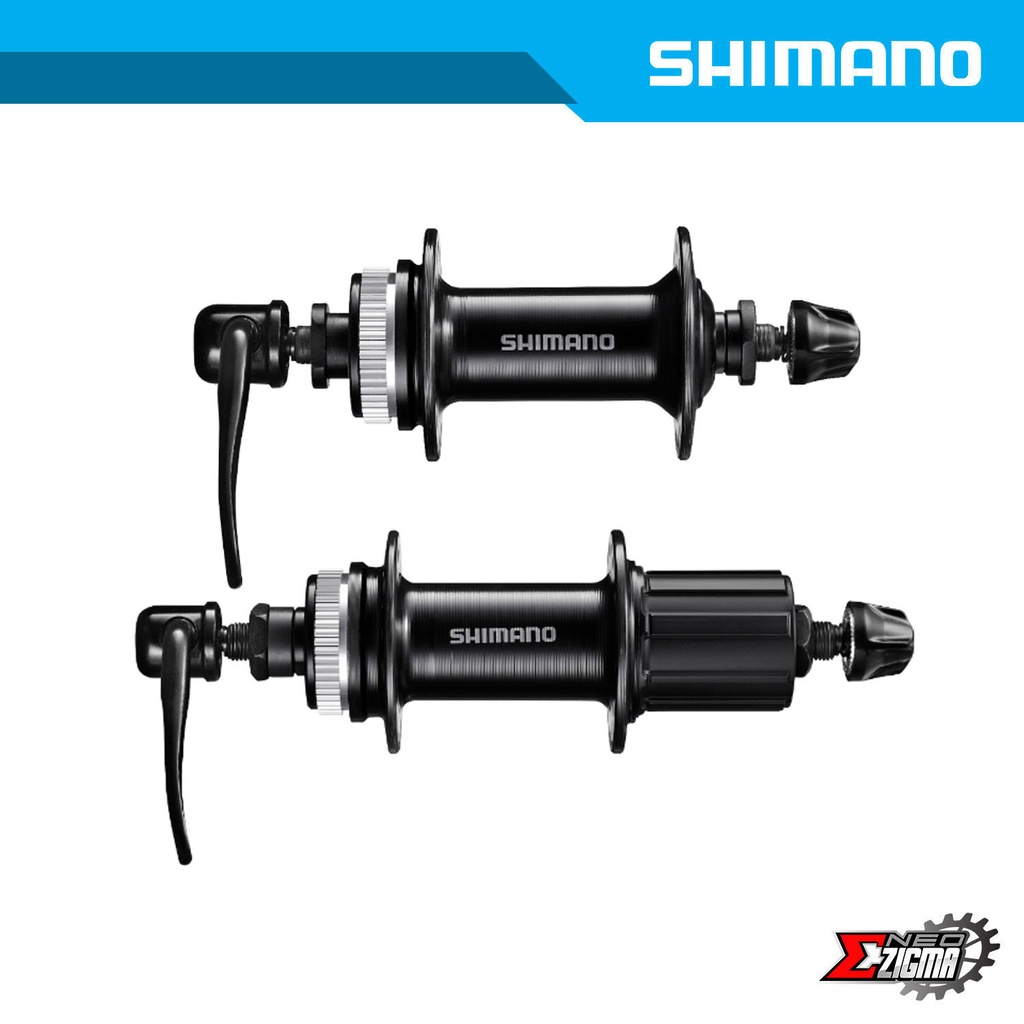

Hub MTB SHIMANO Tourney TX505 36H Center Lock DBR F/R AHBTX505A

This combination does not exist.

Category: HUB-MTB

SHIMANO TOURNEY TX - Front Hub - CENTER LOCK - Disc Brake - Quick Release

For disc brake MTBs, the SHIMANO TX505 secures via a quick release.

FEATURES

Color\|1 Quick release	Black
Brake type	CENTER LOCK disc brake
O.L.D. (mm)	100
Spoke hole\|28H	✔
Spoke hole\|32H	✔
Spoke hole\|36H	✔
External serration disc brake rotor lock ring\|without	✔
Axle fixing method	Quick release
Quick release skewer length (mm)\|129	✔
Quick release skewer length (mm)\|133	✔
Flange distance (mm)	60.2
Offset (mm)	5.3
P.C.D. left / right (mm)	44/44
Flange diameter (mm)	52.8 (32H/36H) 53.8 (28H)
Flange diameter Left/Right (mm)	52.8 (32H/36H) 53.8 (28H)

SHIMANO TOURNEY TX - Rear FREEHUB - CENTER LOCK - Disc Brake - Quick Release - 8/9/10-speed

For disc brake MTBs, the SHIMANO TX505-8 secures via a quick release.
