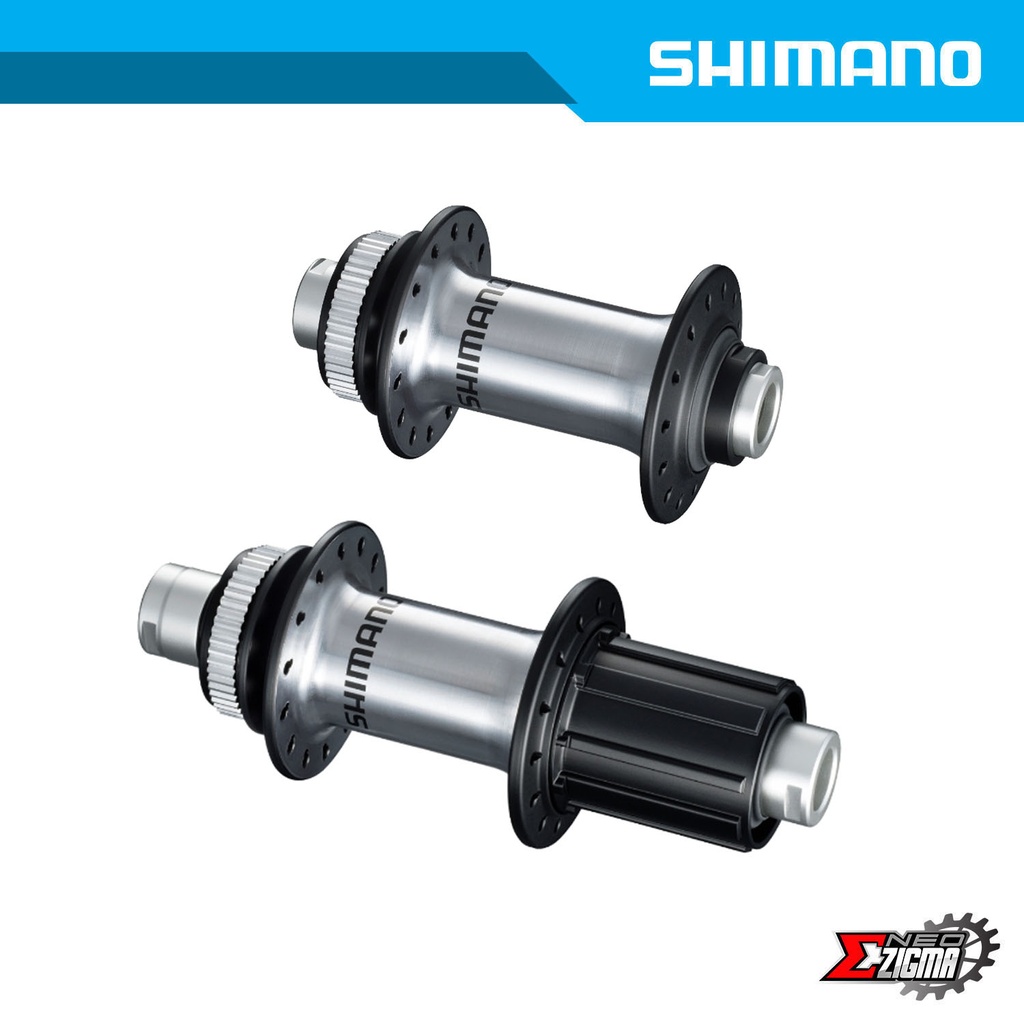

Hub Gravel SHIMANO GRX RS770 100x12mmx142mm 32H Disc Center Lock F/R AFHRS770B

This product is no longer available.

Gravel

SHIMANO - Rear FREEHUB - CENTER LOCK - Disc Brake - 142x12 mm E-THRU Axle - 10/11-speed

For E-THRU disc brake compatible bicycles, the RS770 FREEHUB blends good looks and high quality performance.

FEATURES

Remarks	* Can be used for 10-speed with an additional spacer. For disc brake/ CENTER LOCK mount
Color\|1 Hub shell	Black/Silver
Brake type	CENTER LOCK disc brake
Rear speeds	11/10*
O.L.D. (mm)	142
Spoke hole\|28H	✔
Spoke hole\|32H	✔
Spoke hole\|36H	✔
Internal serration disc brake rotor lock ring\|without	✔
Axle fixing method	12mm E-THRU
Thru Axle (Length x Inner diameter ; mm)\|142 x 12	✔
Flange distance (mm)	55.7
Offset (mm)	7.5
P.C.D. left / right (mm)	44/45
Flange diameter Left/Right (mm)	52.8/53.8
HG spline (ROAD 11-speed)	✔
Seal\|Hub	Contact
Seal\|FREEHUB body	Contact

SHIMANO - Front Hub - CENTER LOCK - Disc Brake - 100x12 mm E-THRU Axle

For E-THRU disc brake compatible bicycles, the RS770 front hub blends good looks and high quality performance.

Color\|1 Hub shell	Black/Silver
Brake type	CENTER LOCK disc brake
O.L.D. (mm)	100
Spoke hole\|28H	✔
Spoke hole\|32H	✔
Spoke hole\|36H	✔
Axle fixing method	12 mm E-THRU
Thru axle (length x inner diameter ; mm)\|100 x 12	✔
Flange distance (mm)	59.6
Offset (mm)	6
P.C.D. left / right (mm)	44
Flange diameter (mm)	52.8
Seal	Labyrinth & Contact
