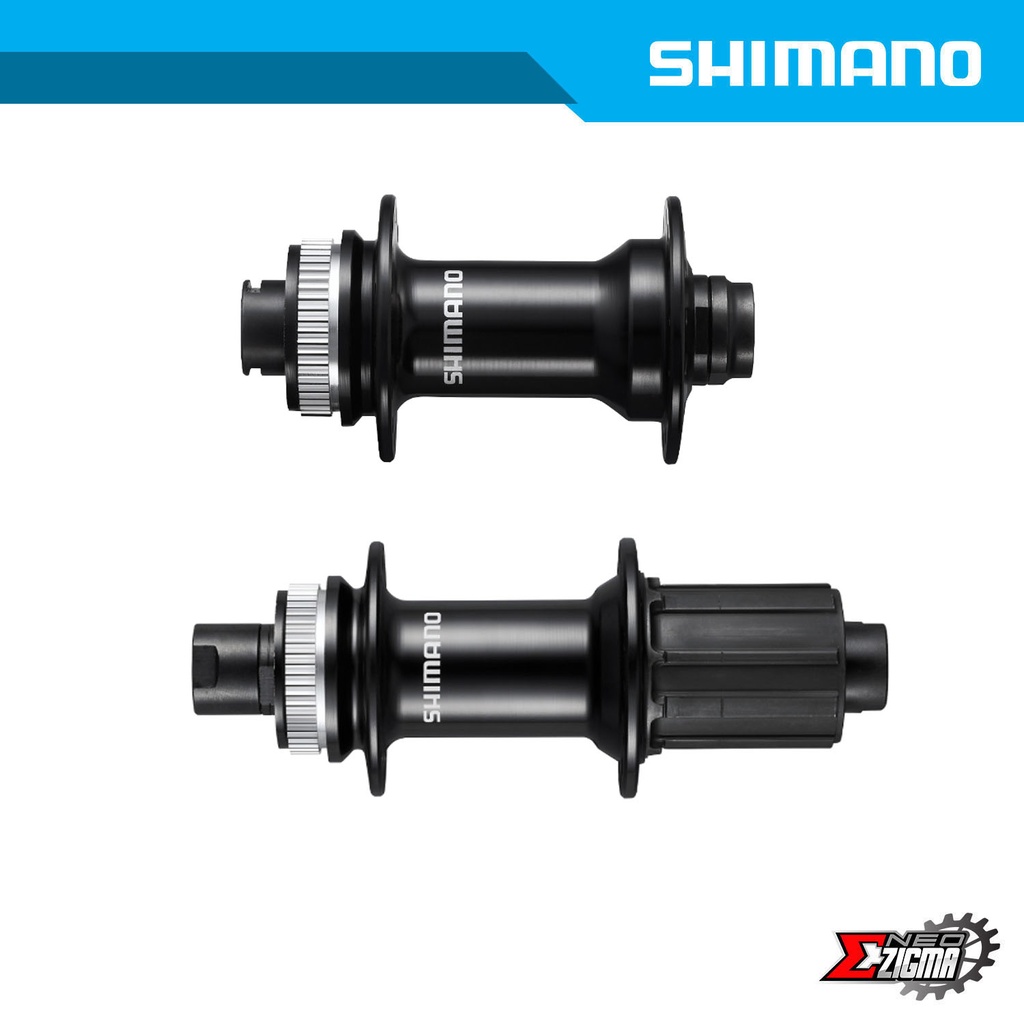

Hub Gravel SHIMANO GRX RS470 100x142mmx 32H E-thru Center Lock Disc F/R AHBRS470BL

This product is no longer available.

Category: HUB-GRAVEL

SHIMANO - Rear FREEHUB - CENTER LOCK - Disc Brake - 142x12 mm E-THRU Axle - 10/11-speed

For E-THRU disc brake compatible bicycles, the RS470 FREEHUB blends good looks and high quality performance.

FEATURES

MODEL NO	FH-RS470
SERIES	SHIMANO
Color	Black
Remarks	* Can be used for 10-speed with an additional spacer

Color\|1 Hub shell	Black
Brake type	CENTER LOCK disc brake
Rear speeds	11/10 *
O.L.D. (mm)	142
Spoke hole\|28H	✔
Spoke hole\|32H	✔
Internal serration disc brake rotor lock ring\|Without	✔
Axle fixing method	12 mm E-THRU
Thru axle (length x inner diameter ; mm)\|142 x 12	✔
Flange distance (mm)	55.7
Offset (mm)	7.45
P.C.D. left / right (mm)	44/45
Flange diameter left / right (mm)	52.8/53.8
Spline type\|HG spline L (ROAD 12/11-speed)	✔
Seal\|Hub	Contact
Seal\|FREEHUB body	Contact
Internal grease sleeve	✔

SHIMANO - Front Hub - CENTER LOCK - Disc Brake - 100x12 mm E-THRU Axle

For E-THRU disc brake compatible bicycles, the RS470 front hub blends good looks and high quality performance.

Brake type	CENTER LOCK disc brake
O.L.D. (mm)	100
Spoke hole\|28H	✔
Spoke hole\|32H	✔
Axle fixing method	12 mm E-THRU
Thru axle (length x inner diameter ; mm)\|100 x 12	✔
Flange distance (mm)	59.6
Offset (mm)	6.3
P.C.D. left / right (mm)	44
Flange diameter (mm)	52.8
Seal	Contact
Internal grease sleeve	✔
Radial lacing	✔
