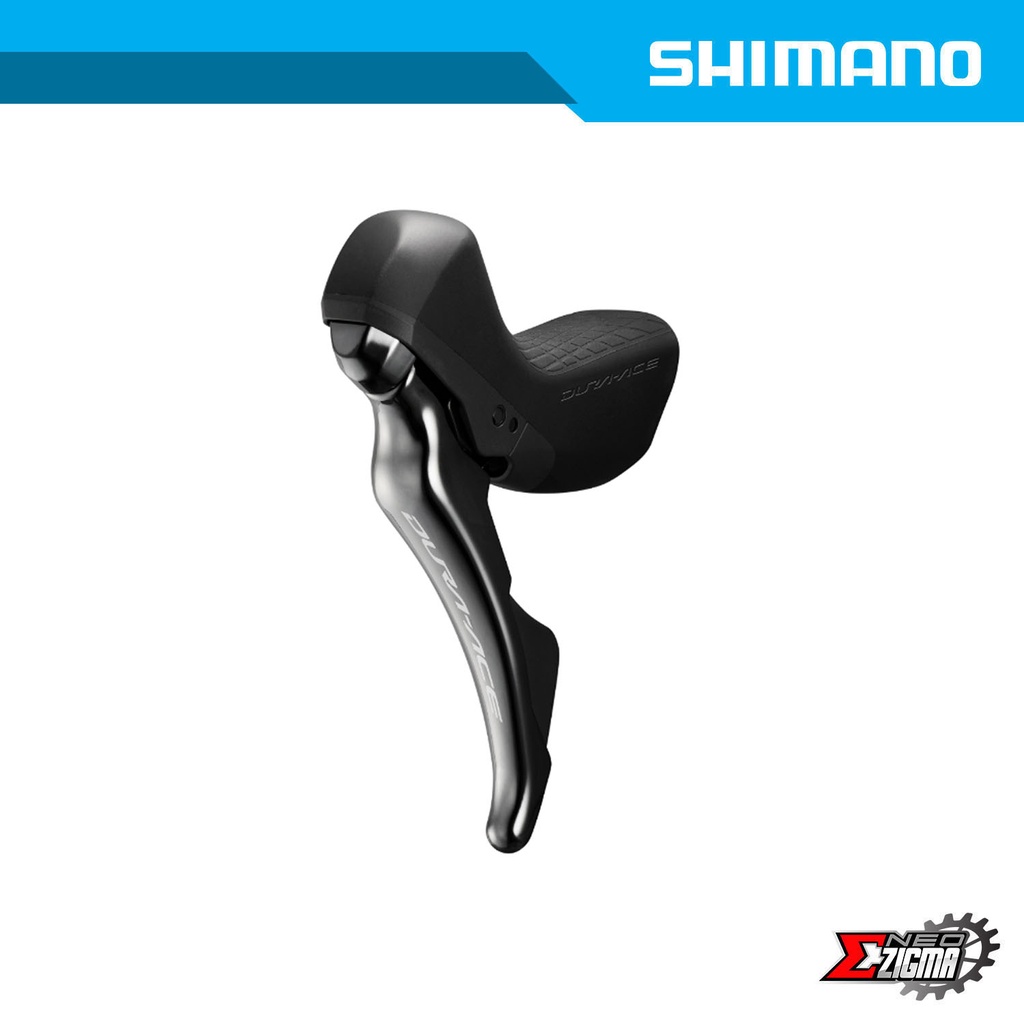

DURA-ACE Hydraulic Disc Brake - DUAL CONTROL LEVER - SERVOWAVE - 2x11-speed
Combining SHIMANO's well-praised hydraulic disc brake technology with light action mechanical shifting, the DURA-ACE R9120 levers have a shorter lever stroke, expanded reach adjust, and lighter front shift action.
FEATURES
Quick and intuitive shifting operation
Shorter lever stroke
Redesigned internal shifting unit
Lighter front shifting operation
Redesign front system with new front derailleur
Comfortable grip and operation
More customizable and precise lever position
Reach adjustment range (10.9 mm)
Consistent braking performance in all weather conditions
Easy brake control Hydraulic Brake
PRODUCT SPECIFICATIONS
MODEL NO
ST-R9120-L
SERIES
DURA-ACE R9100 Series
Color
Series color
Average weight
538 ( /pair)
Bracket cover color|1
Standard
Shifter type
DUAL CONTROL LEVER
Shift lever|Front speeds
2
Brake lever|Brake hose (Kit)
SM-BH90-JK-SSR
Brake lever|Hose joint
Straight
Brake lever specifications|Brake hose color (kit)|1
Black
Brake lever|Recommended brake caliper
BR-R9170
Brake lever|Brake fluid|SHIMANO Mineral Oil
SHIMANO Mineral
Brake lever|Reach adjust|Tool
✔
Brake lever|Reach adjust
✔
Brake lever|Clamp band (mm)
23.8-24.2
Brake lever|Funnel bleeding
✔
Brake lever|Free stroke adjust
✔
Brake lever|SERVO WAVE
✔
Clamp band|Diameter (mm)
23.8-24.2
Shifter Lever body|Release
Resin & Steel
Shift lever cable|Outer casing|Lever side
OT-SP41
Shift lever cable|Outer casing|Rear derailleur side
OT-RS900
Shift lever cable|Inner cable|Polymer-coated cable
