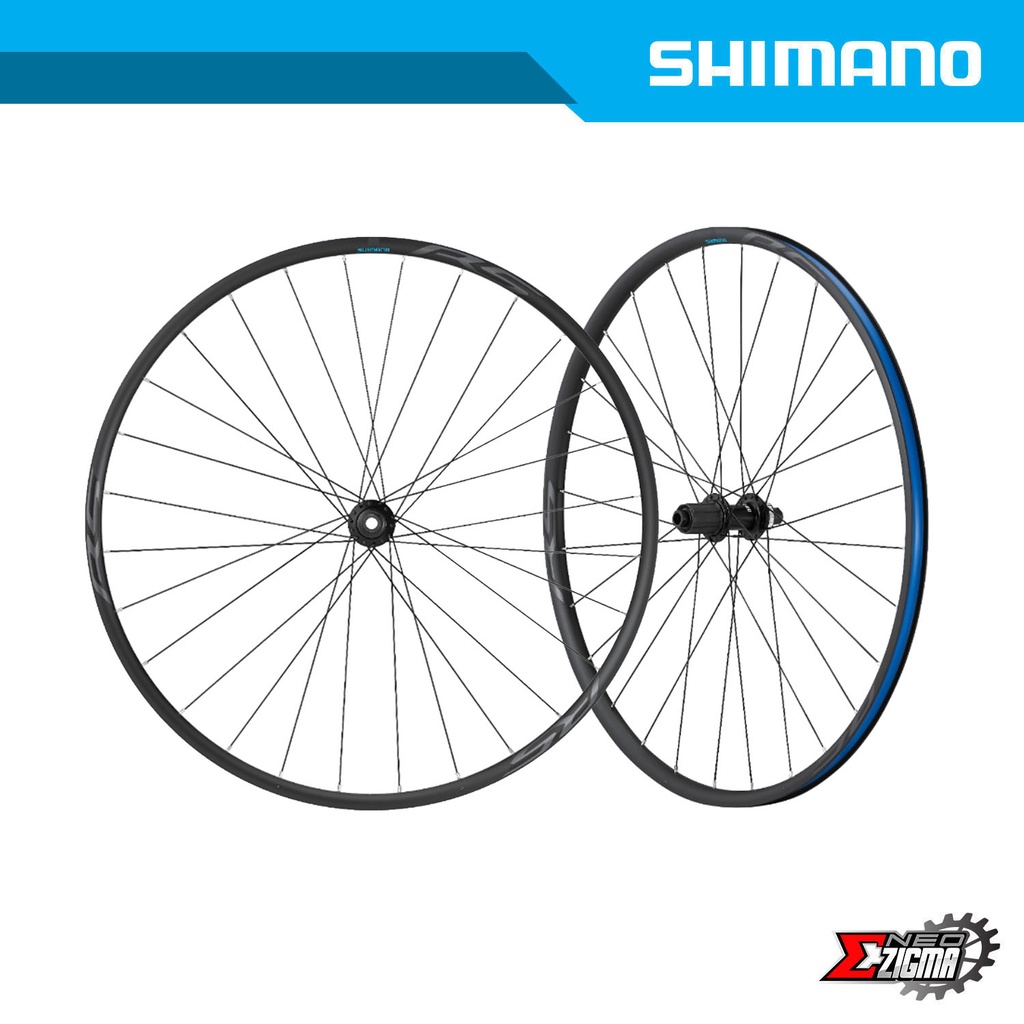

Wheel Set Road SHIMANO Road-Others WH-RS171-700C 12mm E-thru Disc Brake Clincher For 10/11-Spd 100/142mm EWHRS171FERED70B

This combination does not exist.

Category: WHEELSET-ROAD

FEATURES

Model name	WH-RS171-CL
Specification	F12-700c
Color\|1 Hub shell	Black
Front/Rear	Front
Brake type	CENTER LOCK disc brake
O.L.D. (mm)	100
Wheel Size	622 x 19C (700c)
Tire\|Type	Clincher
Tire\|Recommended size	28-622 - 42-622
Rim\|Height (mm)	19
Rim\|Internal width (mm)	19
Rim\|External width (mm)	24.6
Rim\|Rim joint	Sleeved
Rim\|Requires rim tape	✔
Spokes\|Number	28
Spokes\|Diameter (mm)	2
Axle fixing method	12 mm E-THRU
Thru axle (length x inner diameter ; mm)\|100 x 12	✔
Disc mount\|CENTER LOCK	✔
Disc mount\|140 mm Disc brake rotor compatible	✔
Seal\|Hub	Contact
Internal grease sleeve	✔
Reflector\|JIS/CPSC	CATEYE RR-550-WUW SW
Reflector\|AS	CATEYE RR-550-WUA SW
Reflector\|DIN	CATEYE RR-317-WUA SW

Remarks	* The adapter is needed to use 10-speed cassette sprocket
Model name	WH-RS171-CL
Specification	R12-700c
Color\|1 Hub shell	Black
Front/Rear	Rear
Brake type	CENTER LOCK disc brake
Rear speeds	11/10*
O.L.D. (mm)	142
Wheel Size	622 x 19C (700c)
Tire\|Type	Clincher
Tire\|Recommended size	28-622 - 42-622
Rim\|Height (mm)	19
Rim\|Internal width (mm)	19
Rim\|External width (mm)	24.6
Rim\|Rim joint	Sleeved
Rim\|Requires rim tape	✔
Spokes\|Number	28
Spokes\|Diameter (mm)	2
Axle fixing method	12 mm E-THRU
Thru Axle (Length x Inner diameter ; mm)\|142 x 12	✔
Engagement type	Pawl ratchet
Disc mount\|CENTER LOCK	✔
Disc mount\|140 mm Disc brake rotor compatible	✔
Seal\|Hub	Contact
Seal\|FREEHUB body	Contact
Internal grease sleeve	✔
Compatible spoke protector	CP-FH08 (23T-28T 11-speed) CP-WH41 (23-30T 10-speed) CP-WH12 (32T 11/10-speed)
Reflector\|JIS/CPSC	CATEYE RR-550-WUW SW
Reflector\|AS	CATEYE RR-550-WUA SW
Reflector\|DIN	CATEYE RR-317-WUA SW
