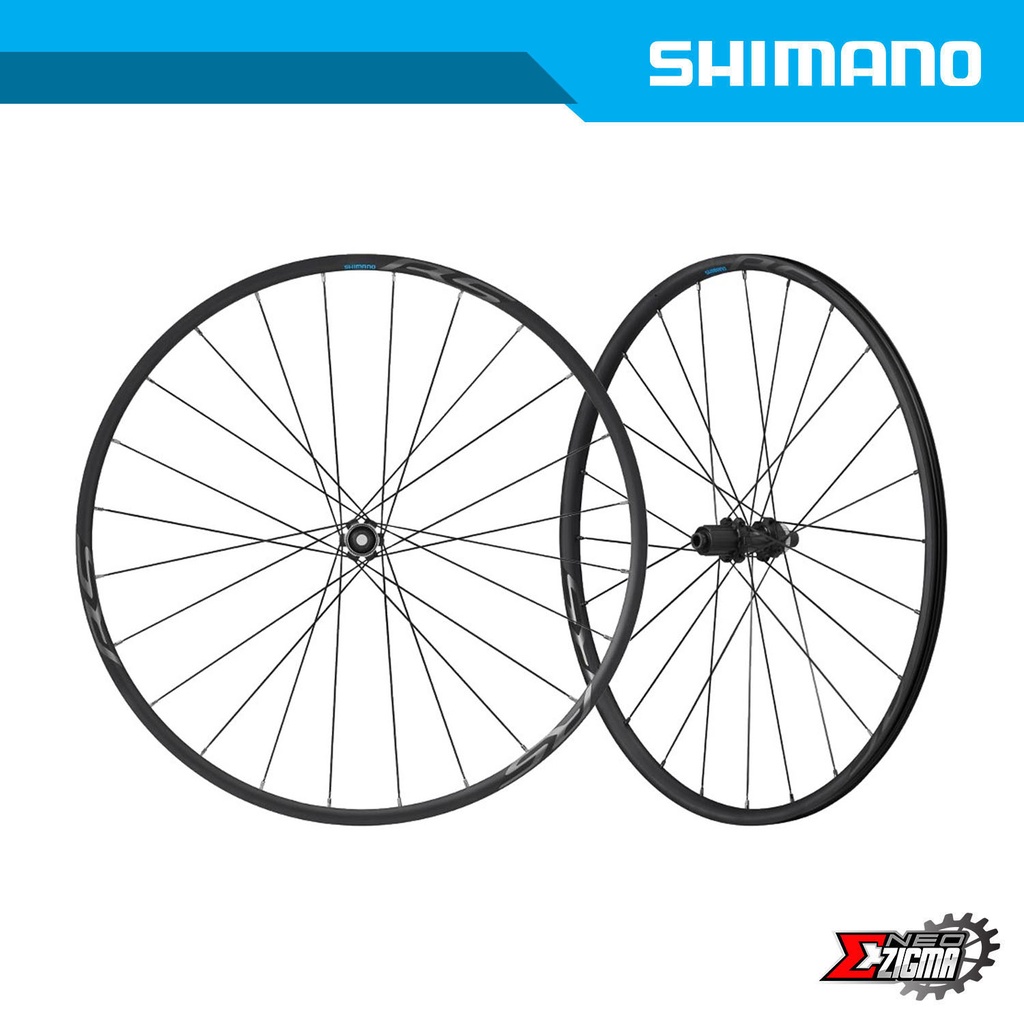

SHIMANO 105 - Tubeless - 19 mm Rim Depth - Disc Brake - 12 mm Thru Axle - Front Wheel
From gravel to tarmac, the 105 RS370 tubeless wheels support wider tires for mixed surface riding. Delivering exceptional value and reliability thanks to trickle down technology from DURA-ACE and ULTEGRA, the lightweight 19 mm RS370 rims are complimented by CENTER LOCK disc brake hubs, providing confident braking in all conditions.
FEATURES
- Highly-effective on various surfaces
- Tubeless rim optimized for wider tires
- 19C rim for 28-40C tires
- Lightweight and effective disc brake rotor mounting
- Reliable disc brake system
- CENTER LOCK
- Compatible with 140 mm disc brake rotor
- 12 mm E-THRU Axle
PRODUCT SPECIFICATIONS
| MODEL NO | WH-RS370-TL-F12 |
|---|
| SERIES | SHIMANO 105 R7000 Series |
|---|
| Color | Black |
|---|
| Average weight | 890 |
|---|
| Model name | WH-RS370-TL |
|---|
| Specification | F12 |
|---|
| Color|1 Hub shell | Black |
|---|
| Front/Rear | Front |
|---|
| Brake type | Disc brake |
|---|
| O.L.D. (mm) | 100 |
|---|
| Wheel Size | 622 x 19C |
|---|
| Tire|Type | Tubeless |
|---|
| Tire|Recommended size | 28-622 - 45-622 |
|---|
| Rim|Height (mm) | 19 |
|---|
| Rim|Internal width (mm) | 19 |
|---|
| Rim|External width (mm) | 23.4 |
|---|
| Rim|Rim joint | Welded |
|---|
| Rim|Requires rim tape | ✔ |
|---|
| Spokes|Number | 24 |
|---|
| Spokes|Straight pull | ✔ |
|---|
| Spokes|Diameter (mm) | 2.0-1.8-2.0 |
|---|
| Axle fixing method | 12 mm E-THRU |
|---|
| Thru axle (length x inner diameter ; mm)|100 x 12 | ✔ |
|---|
| Disc mount|CENTER LOCK | ✔ |
|---|
| Disc mount|140 mm Disc brake rotor compatible | ✔ |
|---|
| Seal|Hub | Contact |
|---|
| Internal grease sleeve | ✔ |
|---|
| Reflector|JIS/CPSC | CATEYE RR-550-WUW SW |
|---|
| Reflector|AS | CATEYE RR-550-WUA SW |
|---|
| Reflector|DIN | CATEYE RR-317-WUA SW |
|---|
PRODUCT SPECIFICATIONS
| MODEL NO | WH-RS370-TL-R12 |
|---|
| SERIES | SHIMANO 105 R7000 Series |
|---|
| Color | Black |
|---|
| Average weight | 1090 |
|---|
| Remarks | * The adapter is needed to use 10-speed cassette sprocket |
|---|
| Model name | WH-RS370-TL |
|---|
| Specification | R12 |
|---|
| Color|1 Hub shell | Black |
|---|
| Front/Rear | Rear |
|---|
| Brake type | Disc brake |
|---|
| Rear speeds | 11/10* |
|---|
| O.L.D. (mm) | 142 |
|---|
| Wheel Size | 622 x 19C |
|---|
| Tire|Type | Tubeless |
|---|
| Tire|Recommended size | 28-622 - 45-622 |
|---|
| Rim|Height (mm) | 19 |
|---|
| Rim|Internal width (mm) | 19 |
|---|
| Rim|External width (mm) | 23.4 |
|---|
| Rim|Rim joint | Welded |
|---|
| Rim|Requires rim tape | ✔ |
|---|
| Spokes|Number | 24 |
|---|
| Spokes|Straight pull | ✔ |
|---|
| Spokes|Diameter (mm) | 2.0-1.8-2.0 |
|---|
| Axle fixing method | 12 mm E-THRU |
|---|
| Thru Axle (Length x Inner diameter ; mm)|142 x 12 | ✔ |
|---|
| HG spline (ROAD 11-speed) | ✔ |
|---|
| Disc mount|CENTER LOCK | ✔ |
|---|
| Disc mount|140 mm Disc brake rotor compatible | ✔ |
|---|
| Seal|Hub | Contact |
|---|
| Seal|FREEHUB body | Contact |
|---|
| Internal grease sleeve | ✔ |
|---|
| Compatible spoke protector | CP-FH08 (23T-28T 11-speed) CP-WH41 (23-30T 10-speed) CP-WH12 (32T 11/10-speed) |
|---|
| Reflector|JIS/CPSC | CATEYE RR-550-WUW SW |
|---|
| Reflector|AS | CATEYE RR-550-WUA SW |
|---|
| Reflector|DIN | CATEYE RR-317-WUA SW |
|---|
